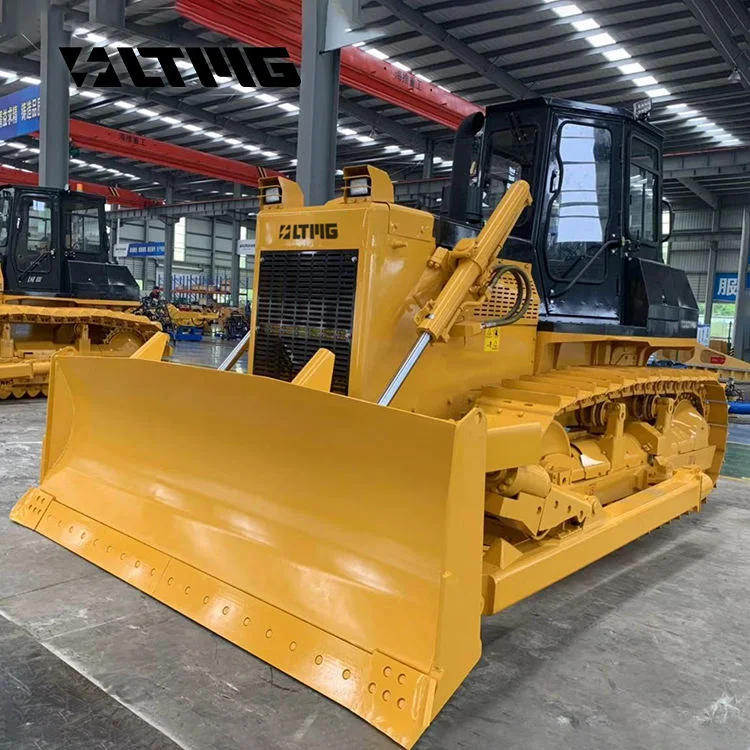

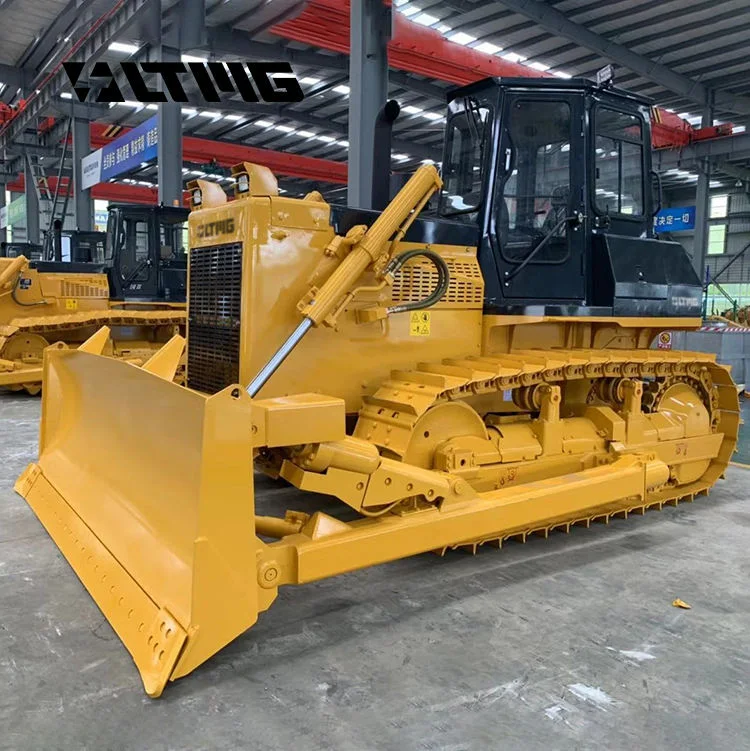

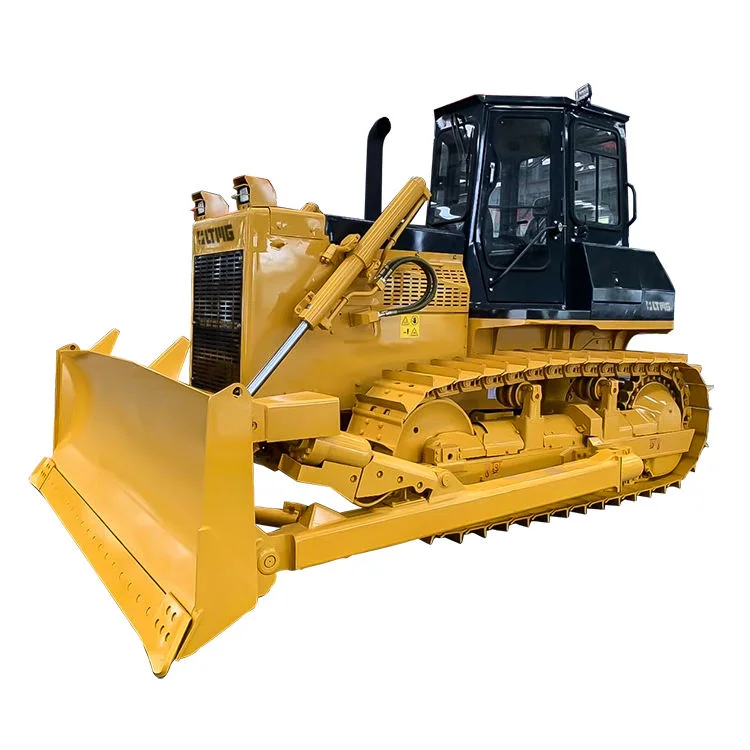

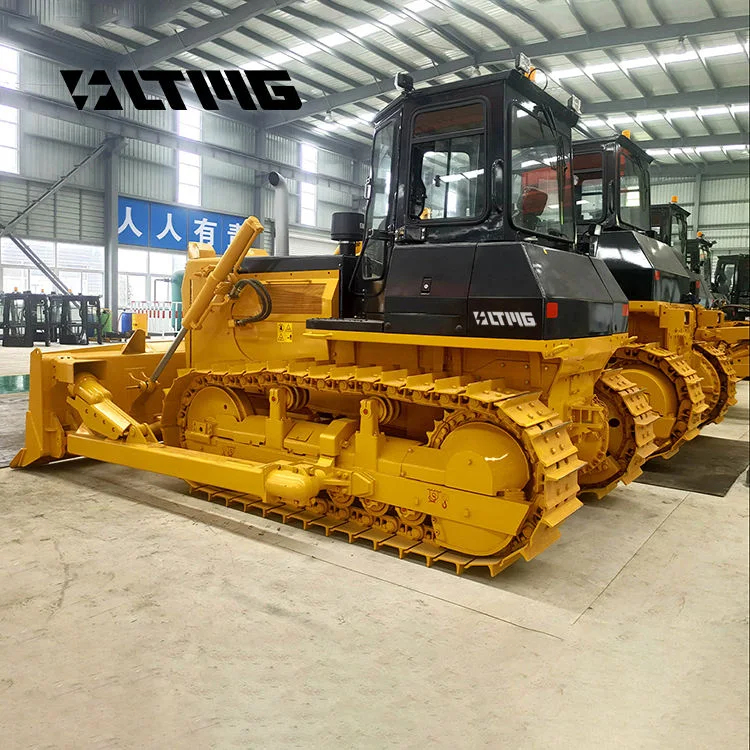

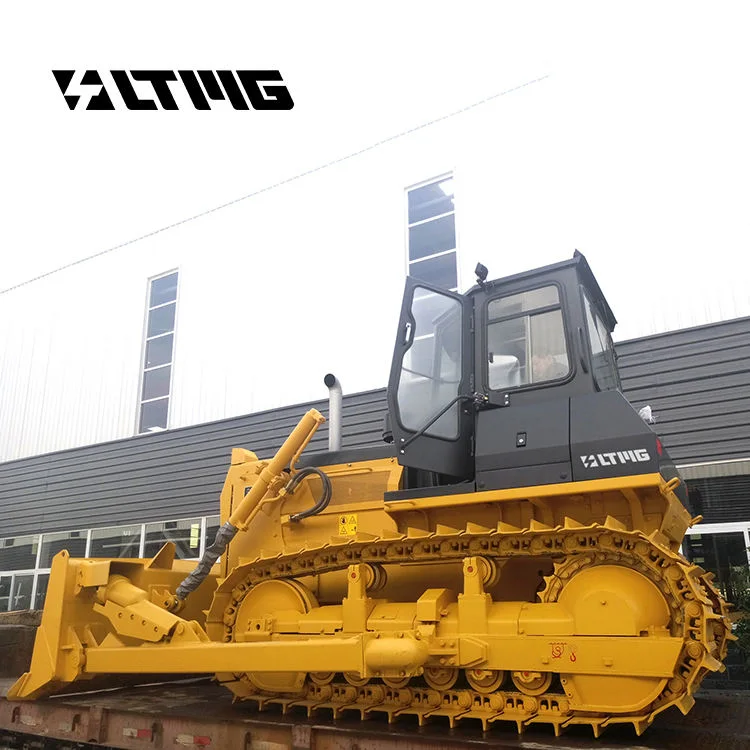

LTMG Road Machinery Manufacturers Crawler Bulldozer Price 160HP 180HP 220HP Dozer Bulldozer for Sale
$ 50,350
$ 0
Key attributes
Brand Name
LTMG
Moving Type
Crawler
Machine Weight
17900 KG
Dozing Capacity
4.5m³
Core Components
Engine, Bearing, Gearbox, Pump
Place of Origin
Fujian, China
Warranty
1 Year
Hydraulic Cylinder Brand
JINAN
Hydraulic Pump Brand
JINAN
Hydraulic Valve Brand
JINAN
UNIQUE SELLING POINT
High operating efficiency
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Dimension(Long * Breadth * High)
6350*3136*3130mm
Product name
180HP Bulldozer
Engine
weichai/cummins-
Horse Power
160hp,180hp
Max.drop below ground
545mm
Blade Capacity
4-8.6cbm
Max.Lift
1100mm
Width Of Blade
2560mm
Fuel Tank Capacity
320L
Packaging and delivery
Selling Units
Single item
Single package size
630X313.6X313 cm
Single gross weight
17900.000 KG
Lead time
| Quantity (units) | 1 - 1 | > 1 |
| Lead time (days) | 60 | To be negotiated |
Customization options
Customized logo (Min. order: 1 unit)
Graphic customization (Min. order: 1 unit)
Customized packaging (Min. order: 1 unit)
Chat now
Product descriptions from the supplier
Warning/DisclaimerThis product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

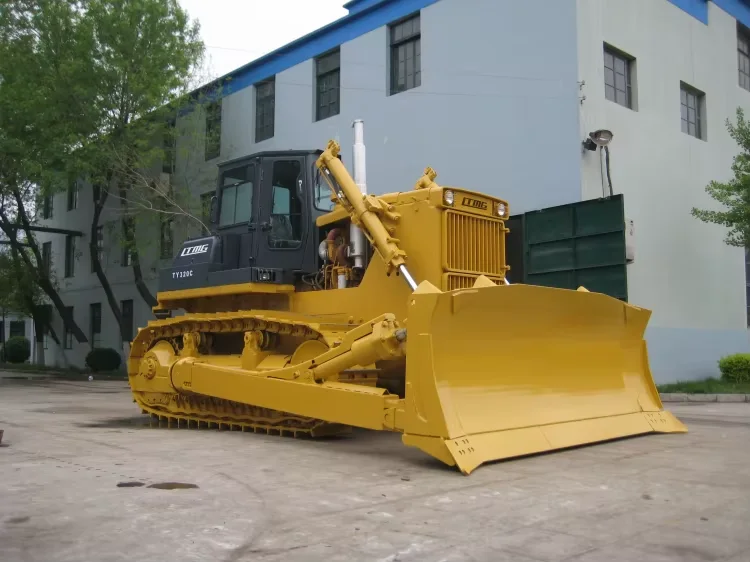

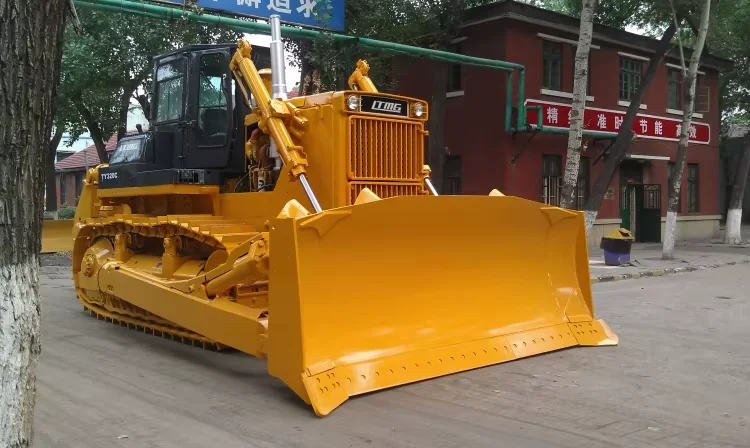

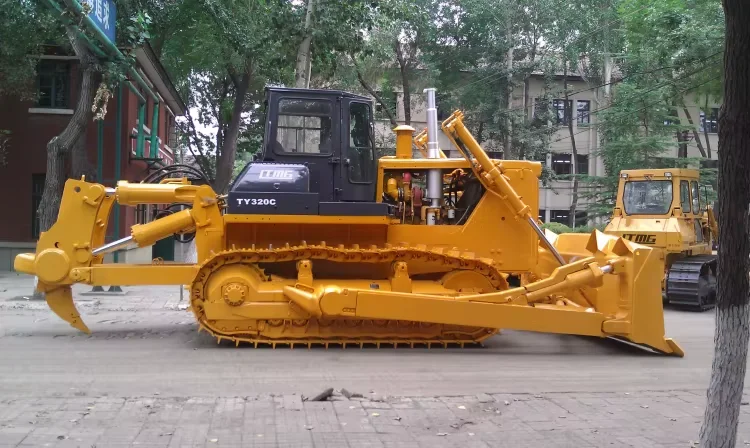

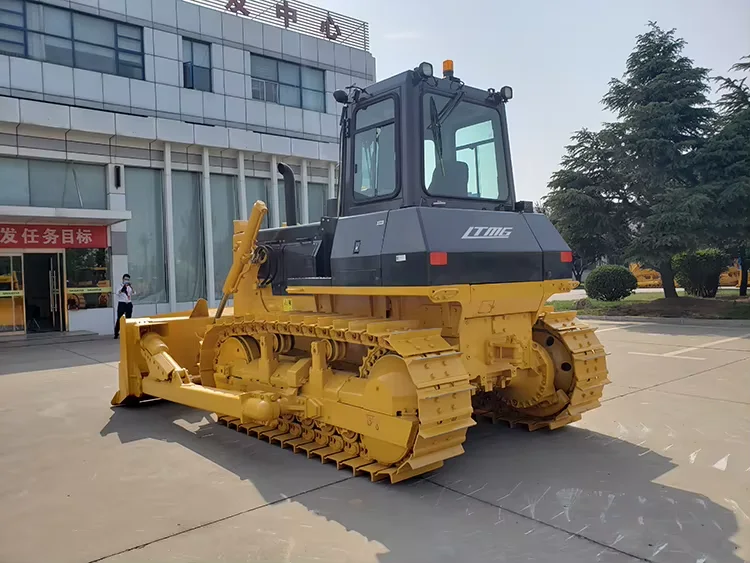

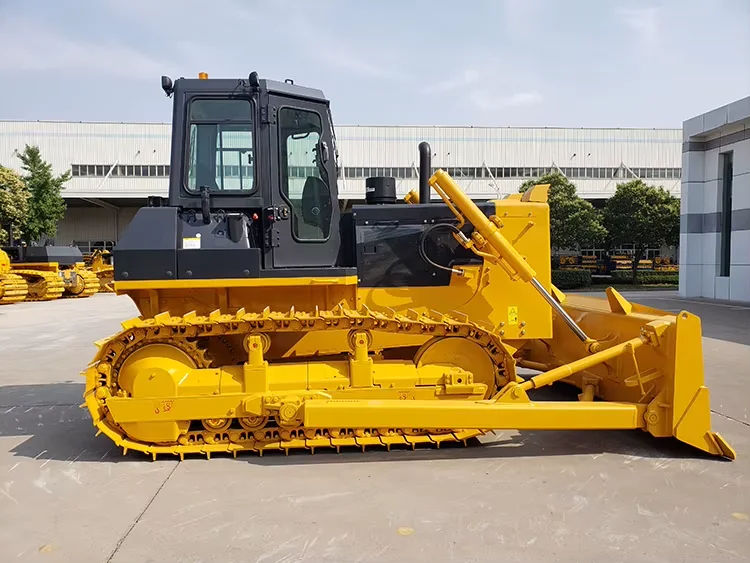

LTMG Bulldozer(160HP-220HP)
Products Specifications
Specification/Blade type | Straight-tilt | Angle | U-Blade | |
Operating Weight | Kg | 17400 | 17700 | 17900 |
Min.Turning Radius | M | 3.2 | 3.2 | 3.2 |
Ground Pressure | MPa | 0.069 | 0.07 | 0.071 |
Track Gauge | MM | 1880 | 1880 | 1880 |
Max. Pulling Force | KN | 142 | 142 | 142 |
Grade Ability | ° | 30 | 30 | 30 |
TRAVEL SPEED | ||||
1st | 2nd | 3rd | ||
Forward (km) | 0～3.8 | 0～6.6 | 0～10.6 | |
Reverse (km) | 0～10.6 | 0～8.5 | 0～13.6 | |
ENGINE | ||||
Model & Type | Weichai WD10G178E25 | |||
6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection | ||||
Rated Revolution | (rpm) | 1850 | ||
Flywheel Horsepower | (HP) | 160 | ||
Cylinder Number-BoreX Stroke | (mm) | 6-126X 130 | ||
Piston Displacement | (L) | 9.73 | ||
Min. Fuel Consumption | (g/kW.h) | 223 | ||
Max.Torque | (Nm/rpm) | 830/1100 | ||
Starting Motor | V*KW | 24*7.5 | ||
POWER TRANSMISSION SYSTEM | ||||
Torque Converte | 3-element,1-stage,1-phase | |||
Transmission | Planetary gearing, hand-manipulated, hydraulic shift， forced lubrication,3 forward and 3 reverse speeds | |||
Bevel Gear | Spiral bevel gear, splash lubrication, single-stage speed reduction | |||
Steering Clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||
Steering Brake | Wet, band type, pedal hydraulic booster, with parking brakes | |||
Final Drive | Double reduction of spur gear, splash lubrication | |||
HYDRAULIC SYSTEM | ||||
Pump Type | Gear pump 07441-67503 | |||
Working Pressure | (MPa) | 13.4 | ||
System Discharge | (L/min) | 250 | ||
Working Cylinder type | Double-acting piston type | |||
Working Cylinder Lift Number-BoreXRodXStroke | (mm） | 2-110X65X1026 | ||
Working Cylinder Tilt BoreXRodXStroke | (mm) | 160X70X140 | ||
UNDERCARRIAGE SYSTEM | ||||
Type | Swing type of sprayed beam, suspended structure of equalizer bar | |||
Carrier Rollers | 2(each side) | |||
Track Rollers | 6/each side (4-single flange, 2-double flange) | |||
Track Type | Sealed, assembled single- grouser | |||
Number Of Track Shoes | 37(each side) | |||
Width Of Track Shoes | (mm) | 510 | ||
Pitch | (mm) | 203.2 | ||
Length Of Track 0n Ground | (mm) | 2430 | ||
WORK EQUIPMENT | ||||
Specification/Blade type | Straight-tilt | Angle | Angle | |
Blade Capacity | (m3) | 4.5 | 4.3 | 8.6 |
Blade Width X Height | (mm) | 3416×1145 | 3970×1037 | 4064×1386 |
Max.Lift | (mm) | 1110 | 1095 | 1110 |
Max.Depth | (mm) | 530 | 545 | 530 |
Max.tilt Adjustment | (mm) | ≥860 | ≥400 | ≥400 |
Pitch Adjustment | ( ° ) | 55 | 55 | 55 |
Capability | (m3/H) | 247 | 247 | 260 |
Weight Of Blade | (kg) | 2350 | 2450 | 2560 |
COOLANT AND LUBRICANT CAPACITY | ||||
Fuel Tank Capacity | L | 320 | ||
Hydraulic Tank Capacity | L | 108 | ||
Engine oil Capacity | L | 45 | ||
Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity | L | 122 | ||
Final Drive Capacity | (L) | 33(each side) | ||
RIPPER(OPTIONAL) | ||||
3-Shank Ripper: | ||||
Max.Digging Depth | (mm) | 572 | ||
Max.Lift | (mm) | 702 | ||
Shank Of Distance | (mm) | 950 | ||
Weight | (kg) | 1700 | ||
1.The Weichai electronic control, direct injection, turbocharged engine equipped features high torque reserve coefficient,excellent energy-conservation and environment-friendliness, and strong power.
2.The split transmission and torque converter system, single-turbine three-element torque converter, and AMT full-automatic electronic control transmission feature simple structure and higher reliability.
3.The electronic control joysticks feature convenient and flexible operations and incorporate the blade floating function.
4.The full-hydraulic maintenance-free wet drive axle features fast response, stable braking, and high safety and reliability.

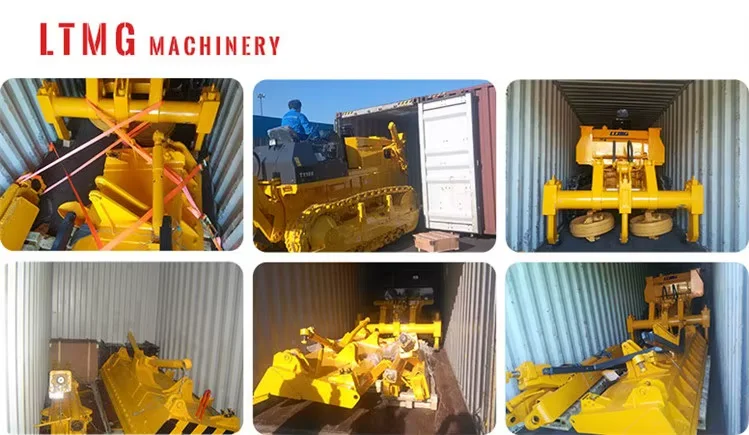

Packaging and Shipping

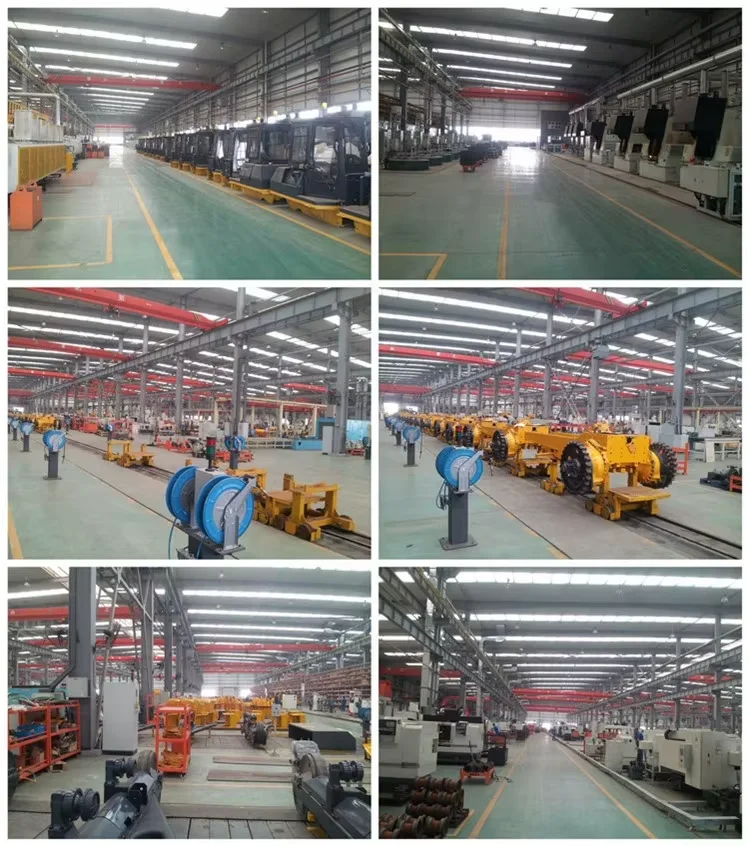

About Us
After sales service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients twelve months or 2000 working hours for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine.
With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
Customer Sharing
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
